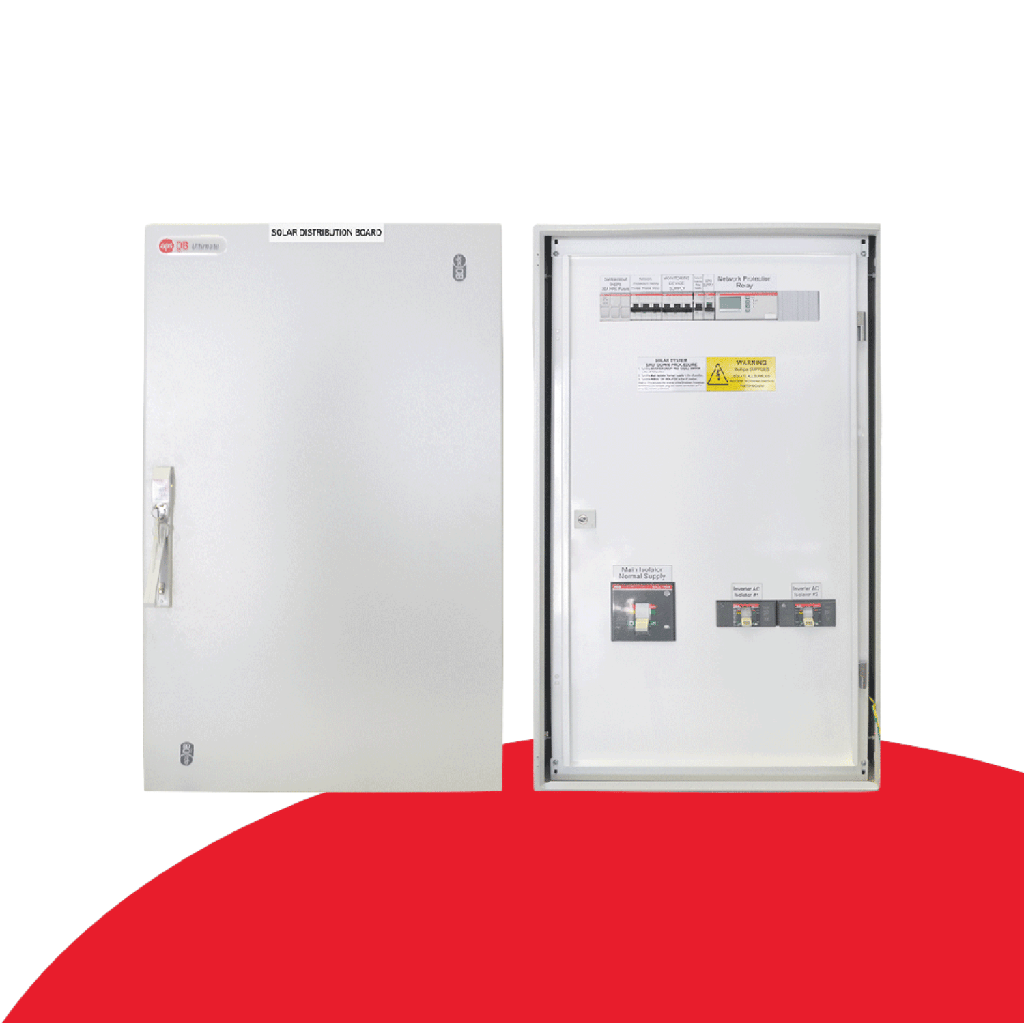

AC Board Pro - 320A Dual Inverter

Secondary network protection & solar distribution board includes the following:
- Metal enclosure, 1000(H) x 600(W) x 250(D) mm
- Powder-coated steel with top and bottom gland plates
- IP 66 rated for outdoor installation
- 3 point lockable handle
- 320A MCCB main switch
- 2 x 148A MCCB inverter circuit breaker
- 350A N/O contactor
- 10A internal GPO
- Spare 3 phase 10A MCB
- ABB secondary network protection relay (preprogrammed to utility requirements)
- Pre-labelled with additional labels included for main switchboard
- All components pre-wired and checked with 2-step QA process
- Suitable for a maximum fault current of 10kA
- For higher fault currents, please call ACSW to discuss
- Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2021, AS/NZS 4777.1:2016, AS/NZS 61439.2:2016


 Available modifications:
- ABB network protection relay can be swapped for ComApp MainsPro (+$50)
- Conversion of AC board to slave equivalent without network protection (-$1000)
- Installation of test links for on-site injection testing (+$100)
- Installation of 3P+N AC surge diversion (+$250)
- Installation of General Signalling Device (Queensland only) (+$100)

Item ID: 2253
SKU: ACBP-322U10

320A max Commercial switchboard with Grid Protection Relay (GPR)

Ideal for commercial solar systems using 2 x SolarEdge 82.8kW inverters The switchboard can be modified to suit Dual SMA or Sungrow inverters. Suitable for most other inverter brands - Contact us for compatibility. Fully labelled with additional labels for main switchboard Grid protection relay (GPR) settings pre-configured to meet Australian Standards and utility requirements Specifications Secondary network protection & solar distribution board includes the following:

• Metal enclosure, 1000(H) x 600(W) x 250(D) mm

• Powder-coated steel with top and bottom gland plates

• IP 66 rated for outdoor installation

• 3 point lockable handle

• 320A MCCB main switch

• 2 x 148A MCCB inverter circuit breaker

• 350A N/O contactor

• 6A internal GPO

• Spare 3 phase 6A MCB

• Secondary network protection relay (preprogrammed to utility requirements)

• Pre-labelled with additional labels included for main switchboard

• All components pre-wired and checked with 2-step QA process

• Suitable for a maximum fault current 17kA

• Compliant to AS/NZS 3008.1.1:2017, AS/NZS 3000:2018, AS/NZS 5033:2014, AS/NZS 4777.1:2016, AS/NZS 61439.2:2016
