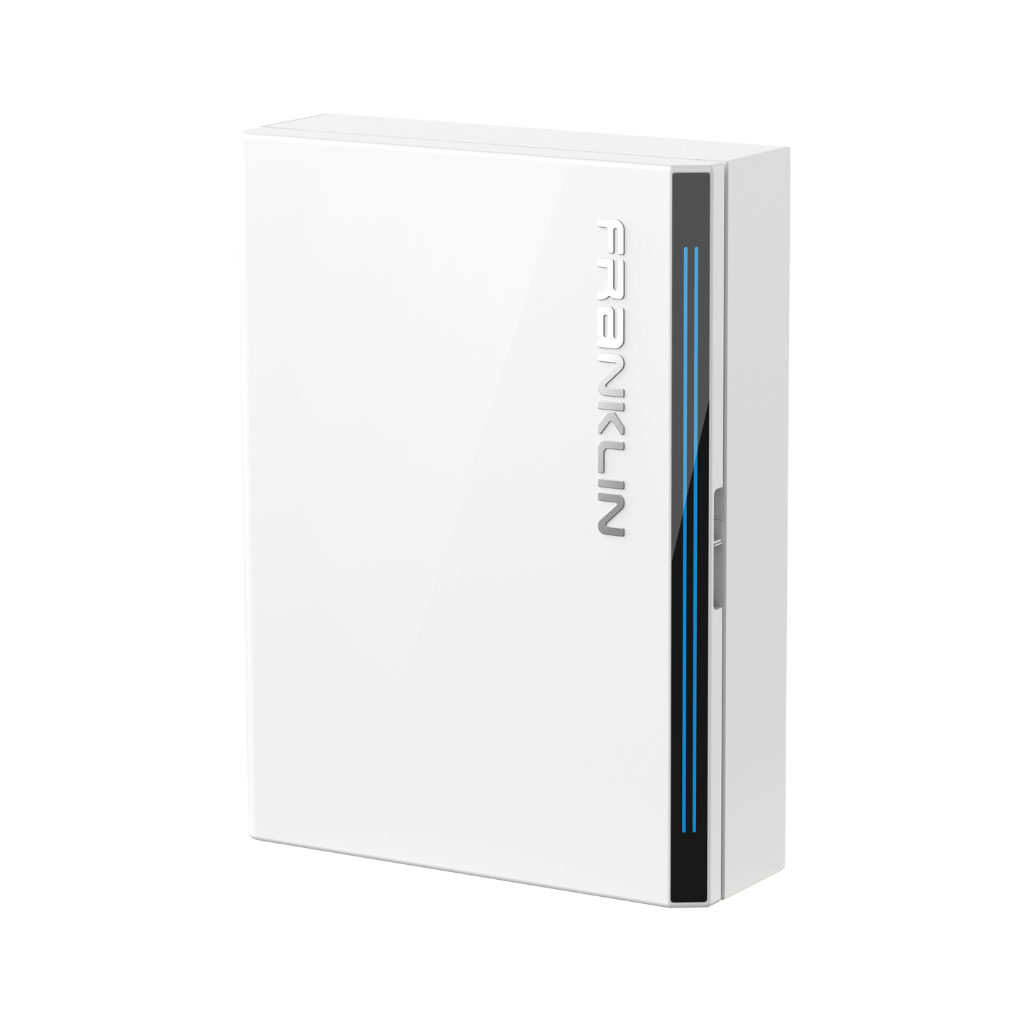

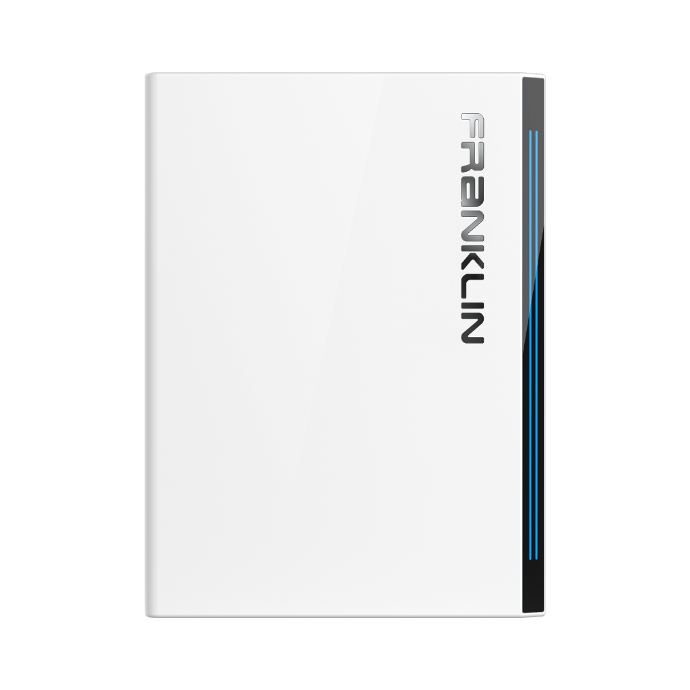

The aGate (SKU: aGate X-01-AU) is a smart management device that seamlessly integrates solar power, grid electricity, generators, and aPower batteries to supply energy to home loads. The aGate Controller is one of the key components of the Franklin Home Power Solution ("FHP").
There are two optional accessories for the aGate:
FranklinWH Smart Circuits Module: Allows manual and scheduled control of individual electric circuits through the FranklinWH App.
FranklinWH Smart Generator Module: Enables the integration of a standby generator into the power supply system, working alongside aPower batteries, solar systems, and the grid
Up to 15 aPowers scalability per aGate
Maximum supply fault current: 10 kA
Communications: Ethernet / 4G / Wi-Fi / Bluetooth
Dimension (H x W x D): 650 × 480 × 160 mm
Weight: 23kg
Installation: indoor or outdoor / wall mount
Max. 4000m of altitude
Operating temperature:v -20°C to 50°C
Ingress rating of IP55
IEC / EN62109-1, IEC / EN62109-2, IEC / EN62477-1, AS/NZS 4777.2:2020, IEC62040-1, IEC / EN61439-1, IEC / EN61439-2
Whole Home Energy Control at your fingertips.
Quick app-based commissioning and remote diagnostics
Easy to use , real time visibility and control for all your whole home's energy
Get it on Google Play or available on the AppStore
